Upgrade your MicroVU VMM with Precision Accessories
Get more out of your Vision Measurement Machine with genuine accessories- designed to enhance accuracy, speed and vertility
VMM by MicroVu is as unique as it can be integrated with multiple sensors i.e. Touch Probes, Laser Sensors, Rotary, Confocal Sensors which can all interact together with each other. Sophisticated programs can be built which use all the above mentioned sensors with vision. If you are already using MicroVu VMM then adding these sensors can reduce your part inspection time and increase the type of parts you can measure.
Accessories Showcase
Expand your VMM’s capabilities to measure complex parts, deep features, and hard-to-reach areas with pinpoint accuracy.
High-precision tactile probing
Ideal for mixed vision + contact measurements
Easy to install and calibrate
Achieve accurate Z-axis measurements and automate surface height detection.
Non-contact measurement
Improves speed for multi-height parts
Perfect for uneven or stepped surfaces
Rotate and measure cylindrical or multi-sided components without manual repositioning.
360° automated rotation
Perfect for shafts, gears, and round components
Saves time on complex part measurements
Advanced software upgrade for better data analysis, reporting, and automation.
Enhanced image processing
Customizable measurement routines
Detailed reporting & integration with QMS

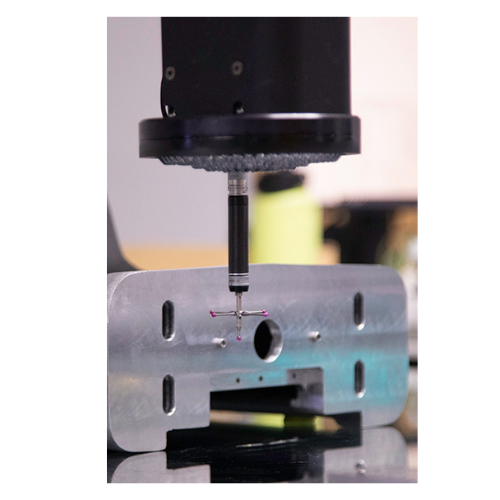

Touch Probe Kit

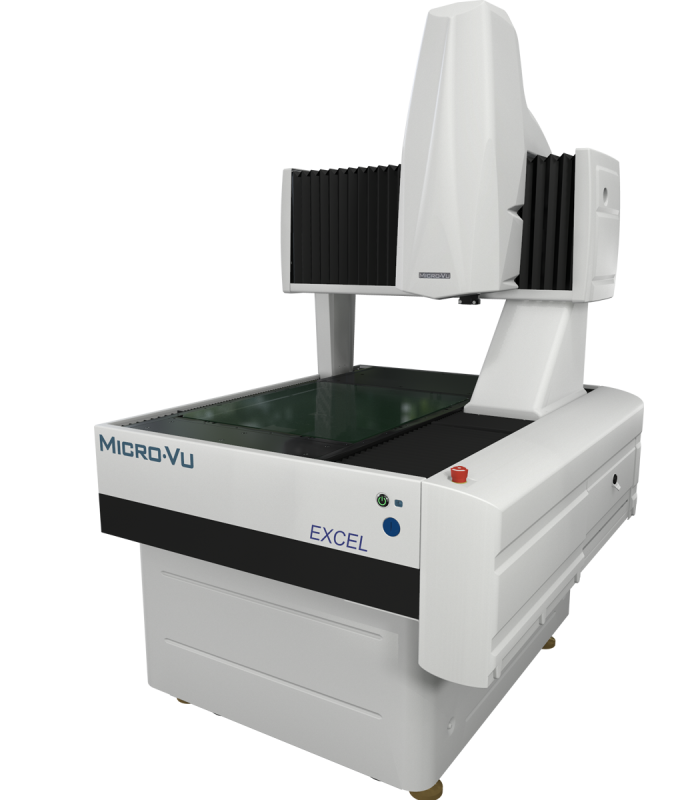

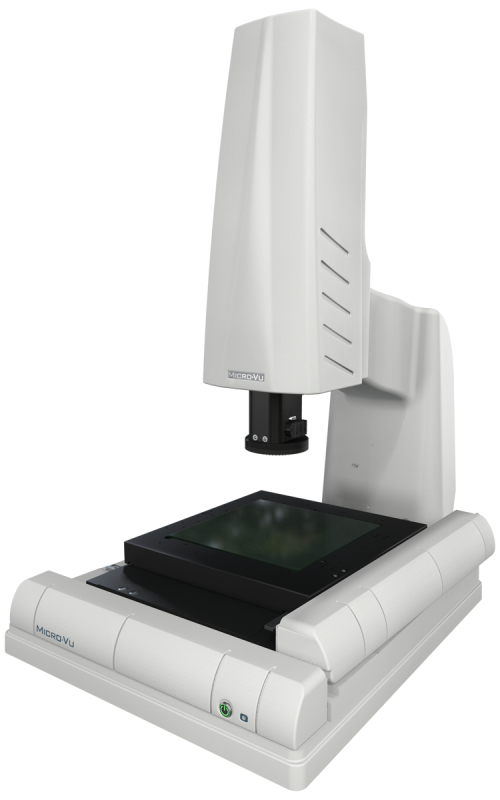

Integrate vision and touch probe measurements with the Vertex and Excel machine models. Touch probe measurements include an automatic approach vectoring and solution iteration.
- TP200/TP20 Probe Body.
- TP200/TP20 Probe Module/s.
- M2 Five Way Stylus Center.
- M2 Stylus (5 ea. 3 mm x 20 mm).
- M2 Extensions (2 ea. 10 mm, 2 ea. 20 mm, & 1 ea. 30 mm).
- Multi-Port Probe Change Rack (2, 4 or 6 Port).
- Module, Stylus, and Fixture Storage Box.
- Micro.Vu Offset Fixture & Reference Sphere Assembly.
- Mounting Hardware, Cleaning Kit, and Case.

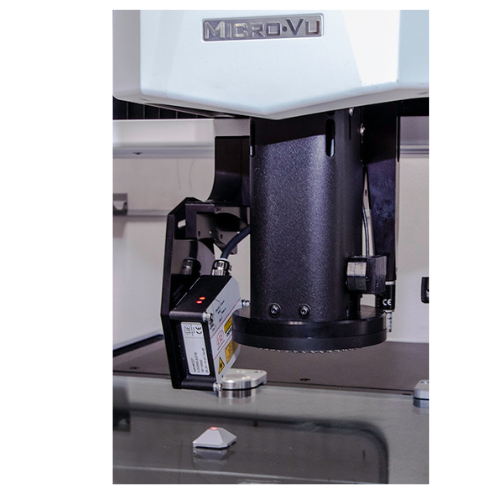

Laser Kit
Micro-Vu Multisensor Measuring Systems are equipped and ready to incorporate laser triangulation sensors. Specular and diffuse mode configurations are available. The distance sensor collects data as it moves between two programmed XYZ locations, ideal for surface flatness and Z distance measurements
- Micro.Vu Measuring Systems are equipped and ready to incorporate laser triangulation sensors.
- Available specular and diffuse modes configurations.
- Collects data as it moves between two programmed XYZ locations, ideal for surfaces’ flatness and Z distance measurements.
- The LSM4-10 and LSM4-2 are supported by the VERTEX 261, 341, 342, EXCEL 511, 512, 701, 702, 704 models.

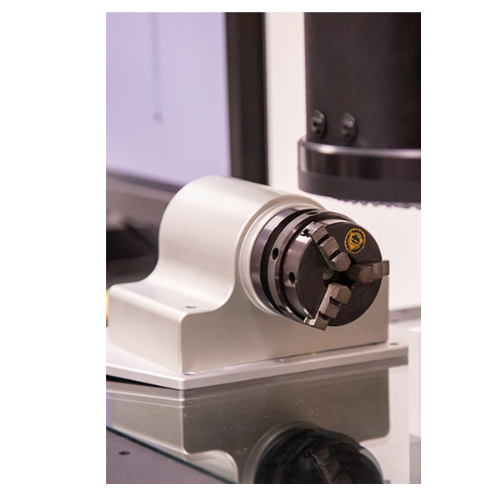

Rotary Kit
The RSD-60 Rotary device can be mounted vertically or horizontally on the VERTEX and EXCEL machine models. InSpec software integrates the rotary seamlessly and offers an intuitive on-screen interface. The rotary allows rotating parts to a position relative to a coordinate system or the current position. This device is commonly used for measurement of medical and dental parts, bits, cutters, valves, fittings, and multi-sided parts.
| External Dimensions (mm) | 95 × 150 × 80 |
| Centerline Height (mm) | 60 |
| Maximum Speed (°/second) | 120 |
| Resolution (Arc Seconds) | 1.3 |
| Accuracy (Arc Seconds) | +/- 15 |
| On Axis Capacity (Nm) | 1.5 |
| Chuck Thread | M14 × 1.0 |
| Weight (kg) | 1.5 |

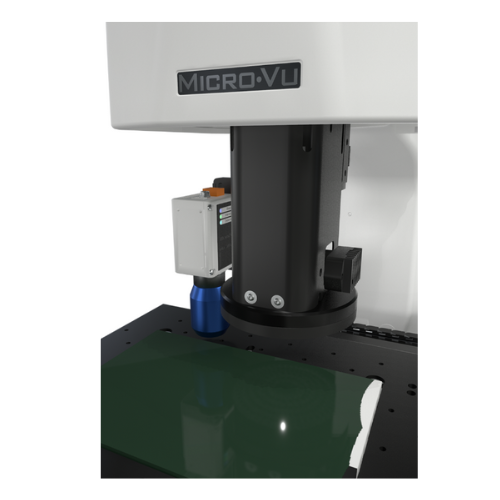

VAS (Vertical Axial Scanner)
Advanced image processing for precise edge detection
Automated measurement routines and batch inspection
3D measurement with vision + probe + sensor integration
Intelligent pattern recognition for complex parts
Customizable reports with QMS/ERP integration
SPC support for quality control
User-friendly interface with touchscreen & multi-language support
