Gocator Line Sensor
3D Online Inspection Sensors By LMI
High-Speed Distance Measuring Devices

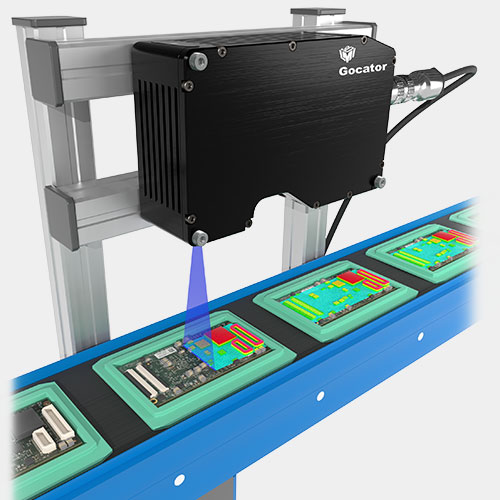

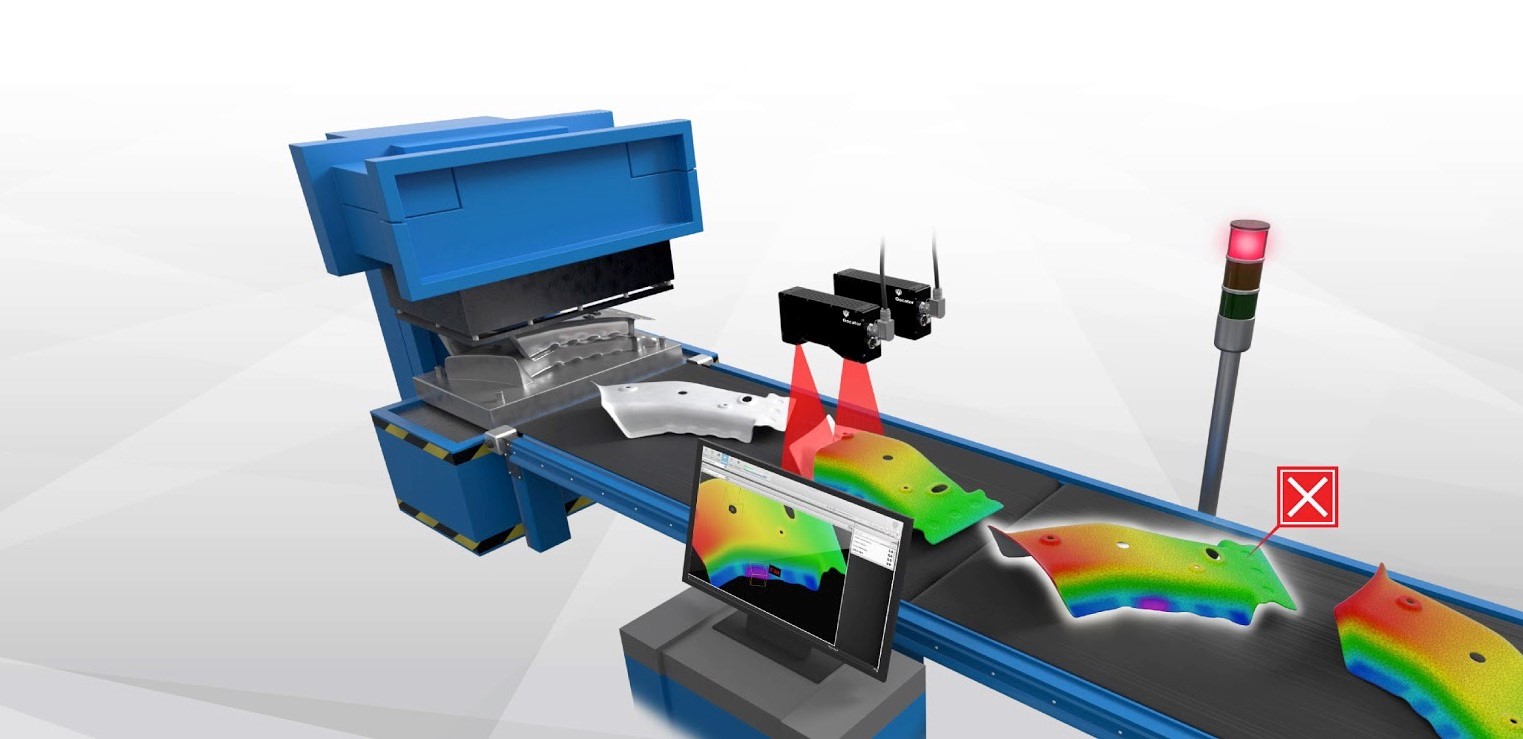

The Gocator line of 3D smart sensors is an all-in-one solution that allows companies to increase product validation efficiencies at a fraction of the expense of more complex alternatives.
Gocator series systems may readily scale up to larger systems or greater solutions since they provide the same measuring tool and output support as high-end sensors.
LINE SENSOR
OVERVIEW

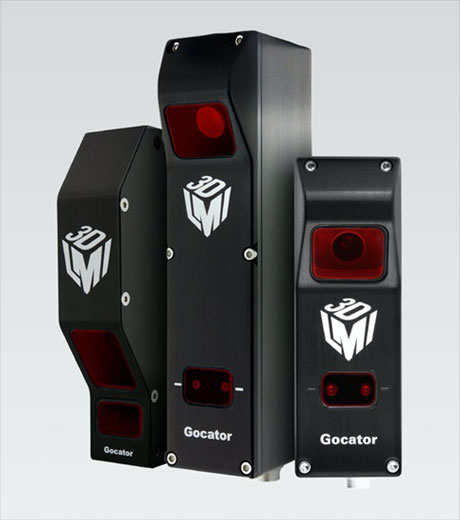

Gocator
Series
Gocator 2100
- Built in tools, no programming
- Direct integration to PLC
- Multiple sensor network ready
- Scalable to higher resolution series
- Setup & control via web browser
Gocator 2300
- Pre calibrated to scan micron-levels detail
- High speed & low latency
- Setup & control via web browser
- Built-in tools, No programming
- Open-source SDK
Gocator 2400
- Pre calibrated to scan micron-level details
- X resolution down to 6um
- Field of view up to 2 m
- Double the speed of Gocator 2300
- Setup & control via web browser or SDK
- Built-in tools, no programming
- Extend with GDK and GoMax
Gocator 2500
- Pre-calibrated to scan out of the box
- X resolution down to 8um
- 10,000 profiles per second including 3D measurement
- Setup & control via web browser or SDK
- Built-in tools, no programming
- Extend with GDK and Gomax
Gocator 2880
- Reduced occlusion with built in dual camera
- High speed & low latency

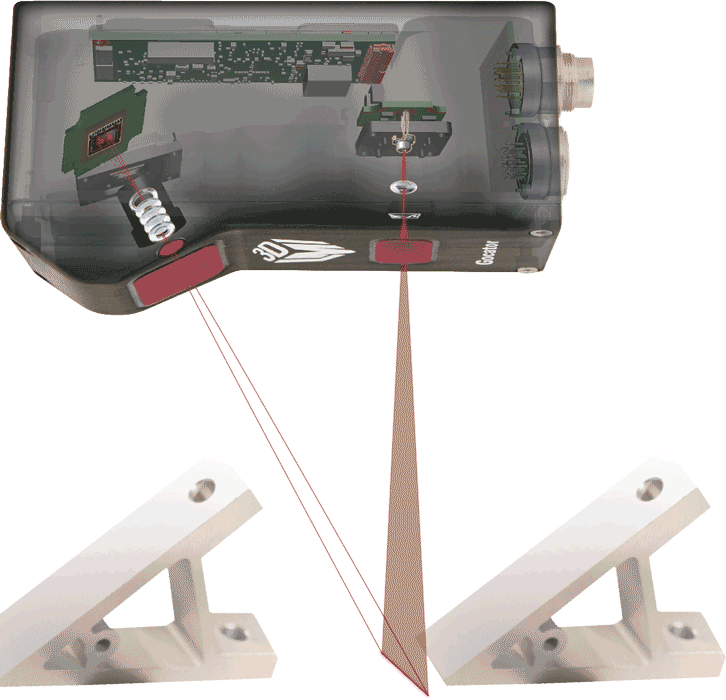

- Dual triangulation laser line profiler
- Binocular sensor for scanning large objects

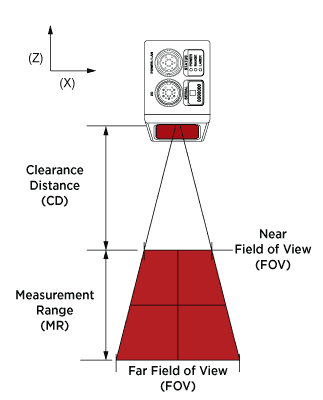

Diagram for reference purpose only
| Model | 2120 | 2130 | 2140 | 2150 | 2170 | 2175 | 2180 |
|---|---|---|---|---|---|---|---|
| Resolution X (mm) | 0.028 | 0.088 | 0.19 | 0.3 | 0.55 | 0.51 | 0.75 |
| Resolution Z (mm) | 0.0018 | 0.006 | 0.013 | 0.019 | 0.055 | 0.0175 | 0.092 |
| Field of View (mm) | 18 - 26 | 47 - 85 | 96 - 194 | 158 - 365 | 308 - 687 | 324 - 1010 | 390 - 1260 |
| Clearance Distance (mm) | 40 | 90 | 190 | 300 | 400 | 650 | 350 |
| Measurement Range (mm) | 25 | 80 | 210 | 400 | 500 | 1350 | 800 |

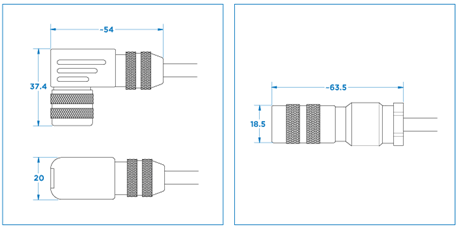

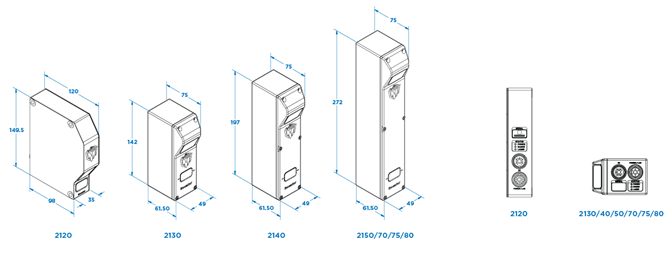

Mechanicals
