EXCEL
Micro.Vu U.S.A.
Automated Precision Gantry Large Bed Measuring System / OMM / Optical CMM / VMM / VMS / Multi-Sensor Measurement Equipment

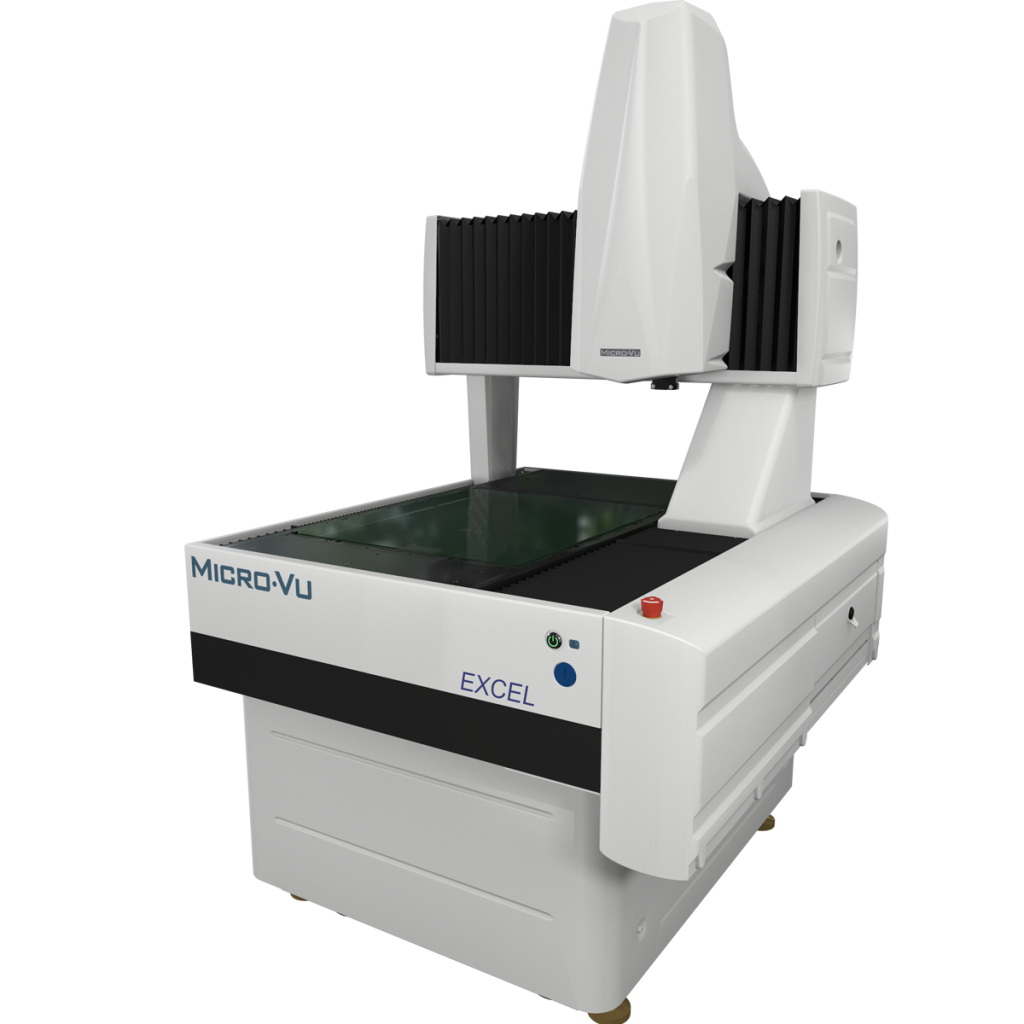

The Micro.Vu EXCEL Measuring Center is a gantry stage system equipped with a high-resolution camera-based measuring system to get fast, accurate measurements on a wide variety of parts. EXCEL can be configured with additional measurement probes and sensors.
EXCEL provides vivid pictures through a programmable optical and digital zoom, supports sensitive touch probe accessories allowing measurement of smaller intricate geometry, and high-speed vertical distance measurement sensors for scanning capability that covers both specular and diffuse parts.
EXCEL includes our InSpec Metrology Software®, which provides point-and-click simplicity, proprietary edge detection, advanced lighting control and calibration, multisensor integration, automated calibrations, and a clear display of measurement data and tolerances.
EXCEL
MACHINE
SPECIFIC
ATION
EXCEL Machine
Features
Accommodates large parts and fixtures of multiple parts while maintaining a compact footprint
Measures parts up to 2.5 meters long and up to 100 kilograms
High resolution digital camera
Programmable optical and digital zoom
Integrated electronic design, for better system performance and serviceability
Advanced proprietary motion control ensures high accuracy measurements at high speed
Supports sensitive touch probes accessories
Programmable profile, surface and coaxial lights
Single USB connection to computer
Integrates high speed vertical distance measurement sensors for scanning capability
Supports RSD-60 Rotary Device
Includes automated calibration procedures
EXCEL
Machine Specifications
| PHYSICAL | EXCEL 511 | EXCEL 512 | EXCEL 701 | EXCEL 702 | EXCEL 704 |
|---|---|---|---|---|---|
| Measurement Volume [mm] | 420 x 520 x 160 | 420 x 520 x 250 | 600 x 700 x 160 | 660 x 700 x 250 | 660 x 700 x 400 |
| Stage Capacity [kg] | 100 | 100 | 100 | 100 | 100 |
| Linear Resolution [µm] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| PHYSICAL | EXCEL 901 | EXCEL 902 | EXCEL 904 | EXCEL 1301 | EXCEL 1302 |
|---|---|---|---|---|---|
| Measurement Volume [mm] | 750 x 900 x 160 | 750 x 900 x 250 | 750 x 900 x 400 | 1050 x 1300 x 160 | 1050 x 1300 x 250 |
| Stage Capacity [kg] | 100 | 100 | 100 | 100 | 100 |
| Linear Resolution [µm] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| PHYSICAL | EXCEL 1304 | EXCEL 1701 | EXCEL 1702 | EXCEL 1704 | EXCEL 2500 |
|---|---|---|---|---|---|
| Measurement Volume [mm] | 1050 x 1300 x 400 | 1250 x 1700 x 160 | 1250 x 1700 x 250 | 1250 x 1700 x 400 | 1600 x 2560 x 160 |
| Stage Capacity [kg] | 100 | 100 | 100 | 100 | 100 |
| Linear Resolution [µm] | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
